Transform any screen into a wireless collaboration hub with the WPD‑900—where instant casting meets uncompromising simplicity.
Whether you’re running a BYOD session in a boardroom or streaming your favourite game on the big screen, the ViewSonic ViewShare WPD‑900 gives you a simple, reliable way to connect and display. All without cables, apps, or network complications.
Plug‑and‑Play Full HD Wireless Casting
The WPD‑900 is a true plug‑and‑play wireless screen‑casting kit that mirrors laptops, tablets, and phones to any display in Full HD (1080p) with smooth, low‑latency performance. It requires no Wi‑Fi, no drivers, and no software installations, making it ideal for fast‑moving environments where different users bring different devices and need to present instantly.
Secure Peer‑to‑Peer Connectivity
Powered by a secure peer‑to‑peer (P2P) wireless connection, the WPD‑900 supports Miracast, AirPlay, and universal casting across Windows, macOS, iOS, Android, and ChromeOS. Covering over 90% of modern devices. This direct encrypted link ensures that guests never need access to internal networks, keeping corporate and educational environments secure.
Long‑Range, Low‑Latency Performance
Users can cast reliably at distances up to 98 ft, making it suitable for large meeting rooms, classrooms, open collaboration spaces, and even informal viewing setups. The low‑latency design ensures smooth transitions, responsive screen mirroring, and stable playback for both professional presentations and entertainment.
How It Works
The ViewSonic ViewShare WPD‑900 is designed to make wireless casting effortless, secure, and universally compatible. Its transmitter–receiver architecture eliminates the need for network access or software, allowing anyone to present or stream in seconds.
Connect the Receiver to the Display
The compact HDMI receiver plugs directly into any TV, monitor, or projector. It draws power through a standard USB port, keeping installation clean and cable‑free. Once powered, it automatically enters pairing mode and waits for a transmitter connection.

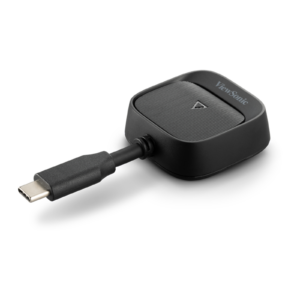

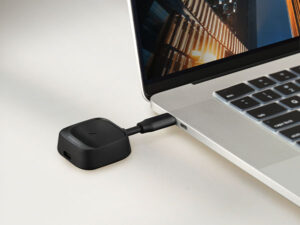

Plug the USB‑C Transmitter Into Your Device
The USB‑C transmitter connects to laptops, tablets, or phones that support USB‑C with DisplayPort Alt Mode. It also includes a 60W USB‑C Power Delivery passthrough, allowing users to charge their device while casting—ideal for long meetings or extended streaming sessions.
Tap to Cast Instantly
With a single tap of the transmitter’s button, your device establishes a secure peer‑to‑peer wireless link with the receiver. No Wi‑Fi networks, no passwords, and no software installations are required. Your screen appears on the display in Full HD (1080p) within seconds.
Present, Stream, or Share Content Smoothly
Switch Users Instantly
When it’s time for the next presenter, simply unplug the transmitter and hand it off. The new user plugs it in, taps the button, and takes over the display immediately—no reconfiguration or pairing required. This makes the WPD‑900 ideal for BYOD environments with rapid presenter turnover
The WPD‑900 eliminates connection headaches with instant, secure, Full HD casting for every device and every presenter.
Features and Specifications
- Dimensions:
- Transmitter (TX): 6.7″ × 1.6″ × 0.6″
- Receiver (RX): 26.7″ × 0.7″ × 0.2″
- Weight:
- Transmitter: 0.05 lbs
- Receiver: 0.06 lbs
- Connectivity:
- Wireless:
- Wi‑Fi 5 GHz (AM9421, 1T1R)
- Peer‑to‑peer encrypted connection (no network required)
- Supports AirPlay, Miracast, ChromeOS casting
- Wired Ports:
- Transmitter:
- USB‑C (video)
- USB‑C (power input, up to 60W PD passthrough)
- Receiver: HDMI, USB‑A (power input only)
- Power & Battery:
- No internal battery (powered via USB).
- Transmitter power: 5V / 1A (3W consumption)
- Receiver power: 5V / 0.5A (1.5W consumption)
- USB‑C passthrough charging: Up to 60W Power Delivery to charge your laptop/tablet while presenting.
- Features:
- Full HD 1080p60 wireless casting up to 98 ft
- Instant plug‑and‑play (no apps, no drivers)
- AES‑128 encrypted connection for secure presentations
- BYOD compatibility: Windows, macOS, Android, iOS, ChromeOS
- USB‑C charging passthrough (60W)
- Low‑latency screen mirroring
- HDCP 1.4 support
- 2‑channel PCM audio support
For more information or to purchase the WPD-900 – ViewShare WPD-900 Wireless Screen Casting Kit
